This page will be dedicated to the hardware specifications, descriptions, and information related to the Google Chromecast (H2G2-42).
Buying devices is expensive and, in a lot of cases our testing leads to bricked equipment. If you would like to help support our group, site, and research please use one of the links below to purchase your next device.
Purchase the Google Chromecast at Amazon

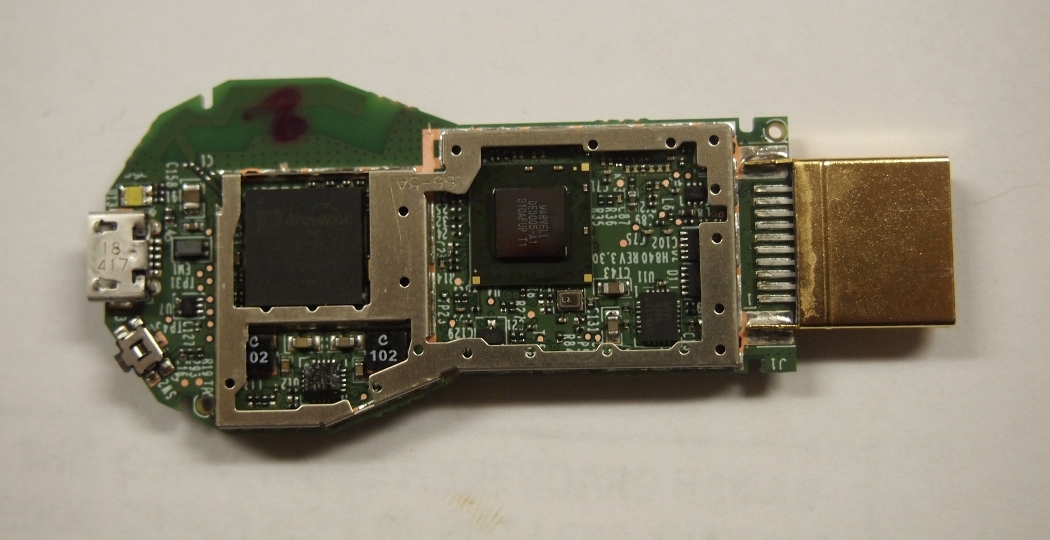

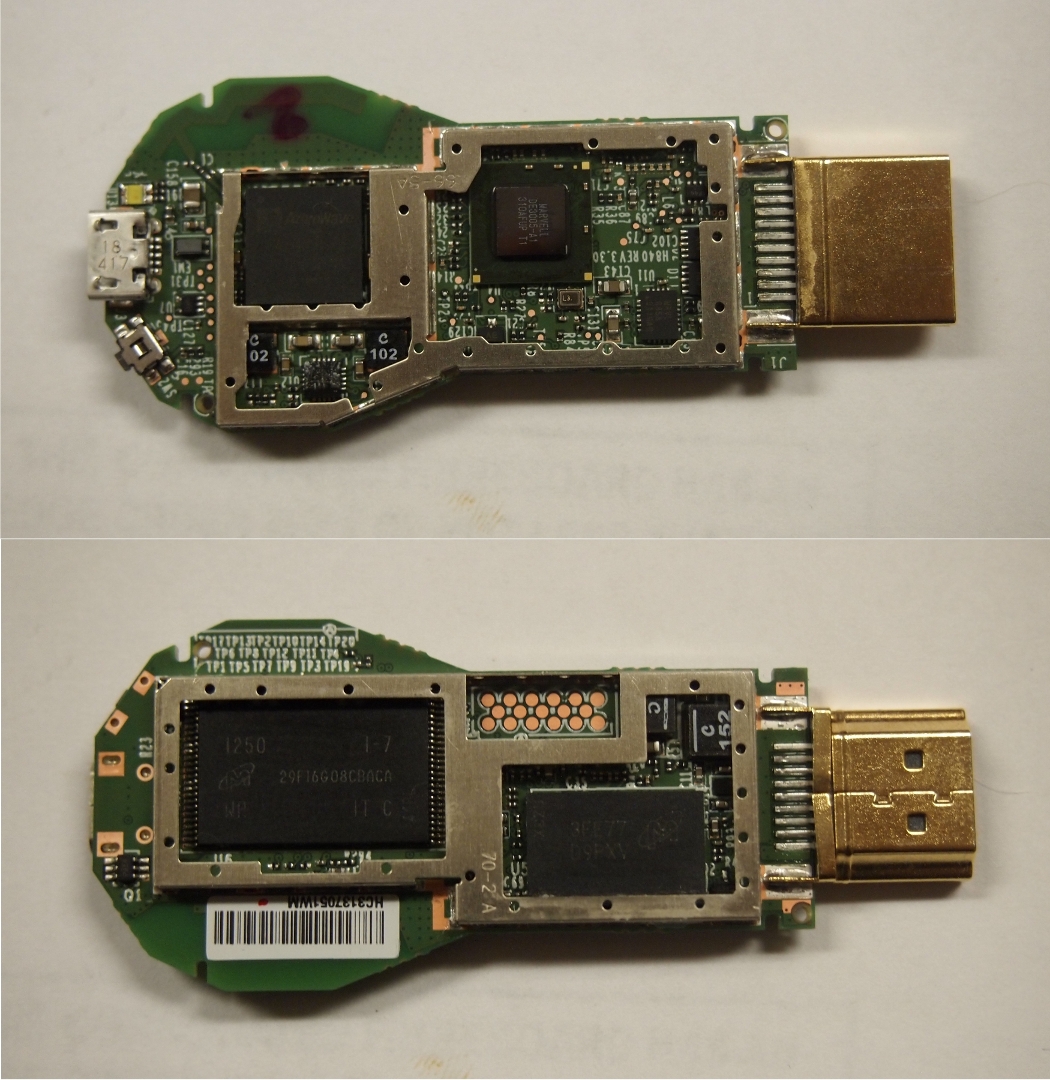

- Azure Wave AW-NH387 - 802.11 b/g/n WLAN, Bluetooth, FM combo module IC
- Marvell 88DE3005 (DE3005-A1)
- Micron 29F16G08CBACA (2GiB Flash NAND)
- Micron 3FE77D9PXV (512MB RAM)
The following info has been pulled from /proc/cpuinfo on the Chromecast.
Processor : ARMv7 Processor rev 0 (v7l) BogoMIPS : 1594.16 Features : swp half thumb fastmult vfp edsp thumbee neon vfpv3 CPU implementer : 0x41 CPU architecture: 7 CPU variant : 0x3 CPU part : 0xc09 CPU revision : 0 Hardware : MV88DE3100 Revision : 0301 Serial : 0000000000000000
At its core Google Chromecast is Android. Items below can be found that help describe the Chromecast operating environment.
- Chromecast Build.prop - A build.prop that details all the config props setup on the device in its shipped configuration.

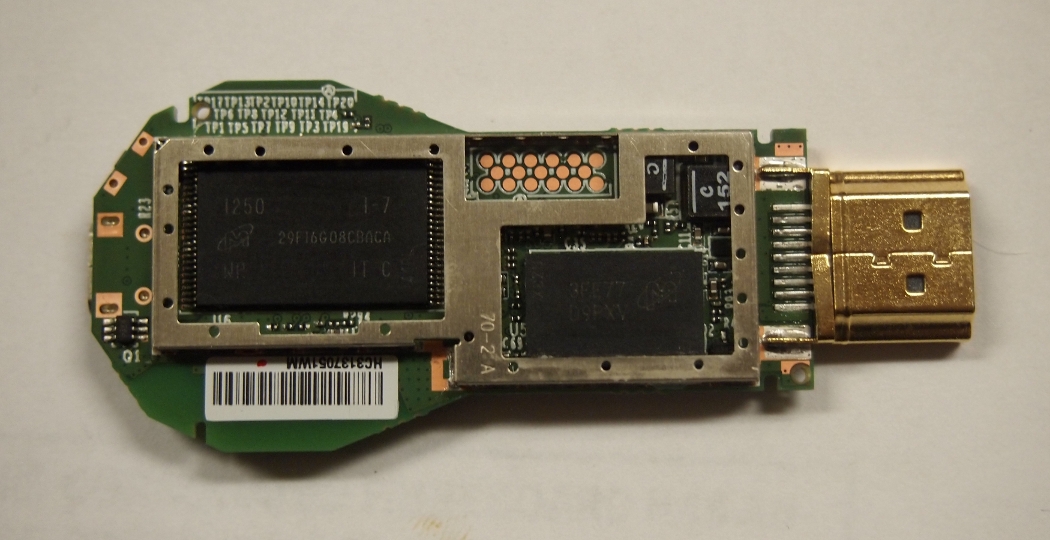

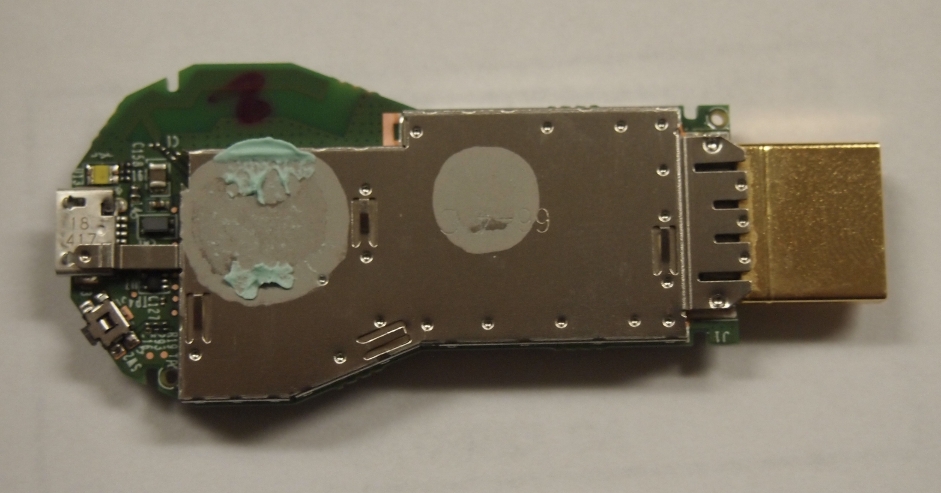

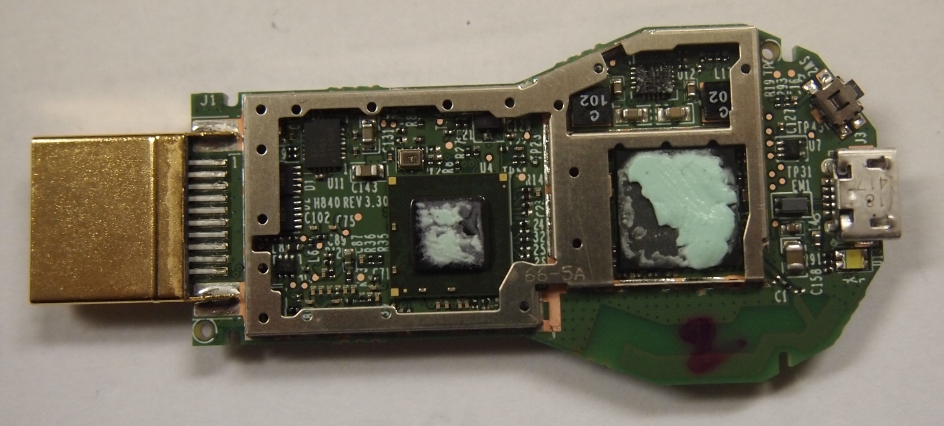

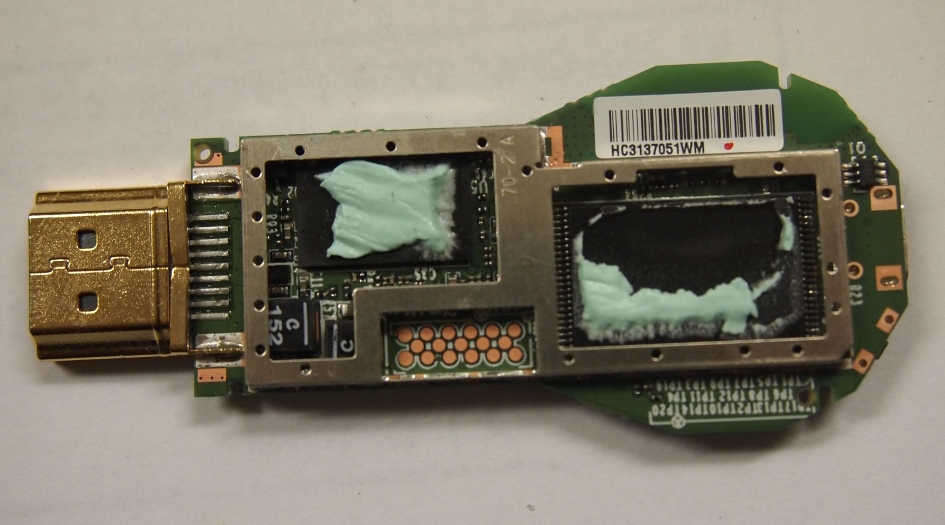

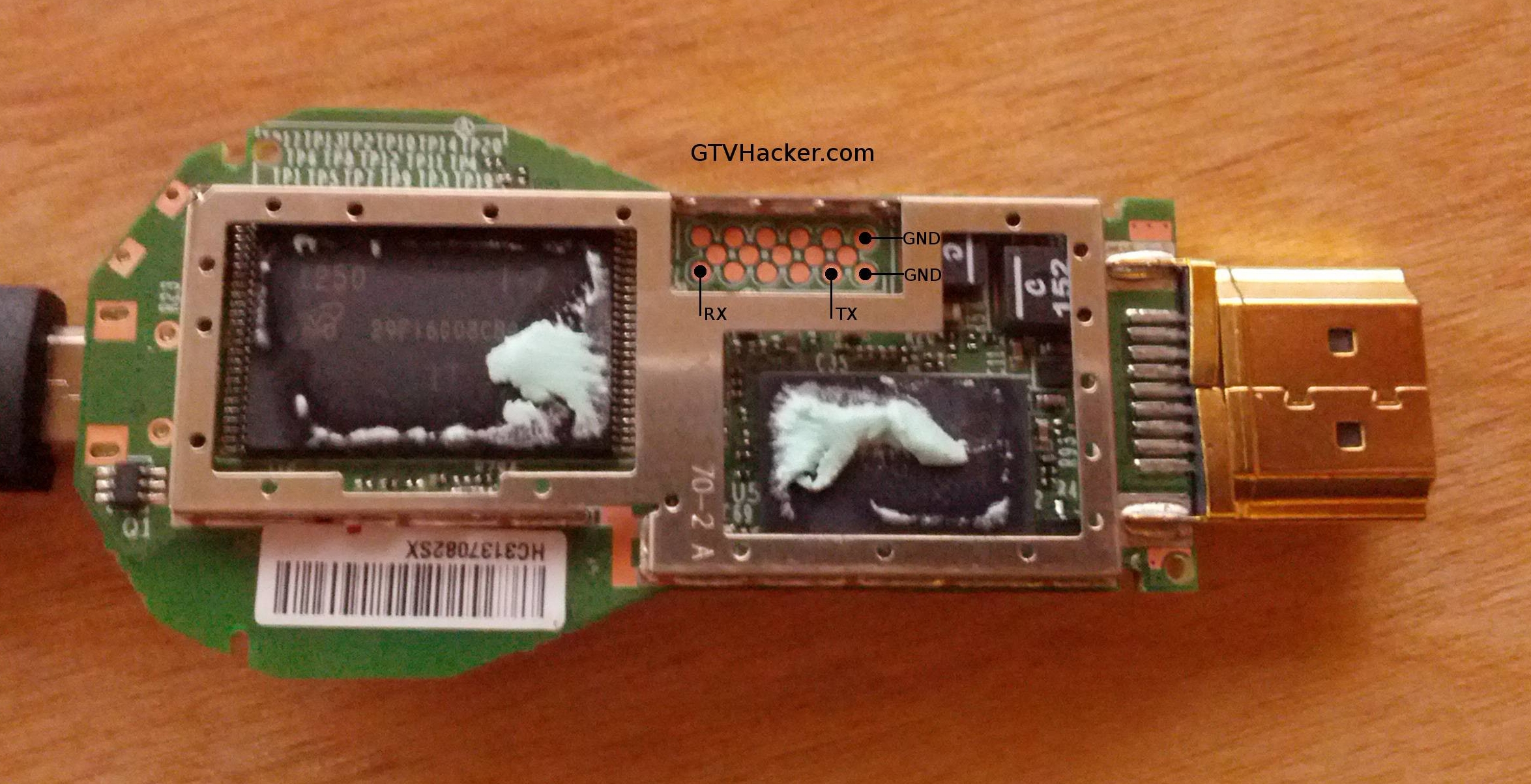

After taking the Google Chromecast apart and also removing the shielding, you receive access to a 17 point unpopulated pad. This pad contains an RX, TX and GND for UART. Currently this only displays console output from the initial boot process.
- Settings: 115200 8n1
- Console Out: Log

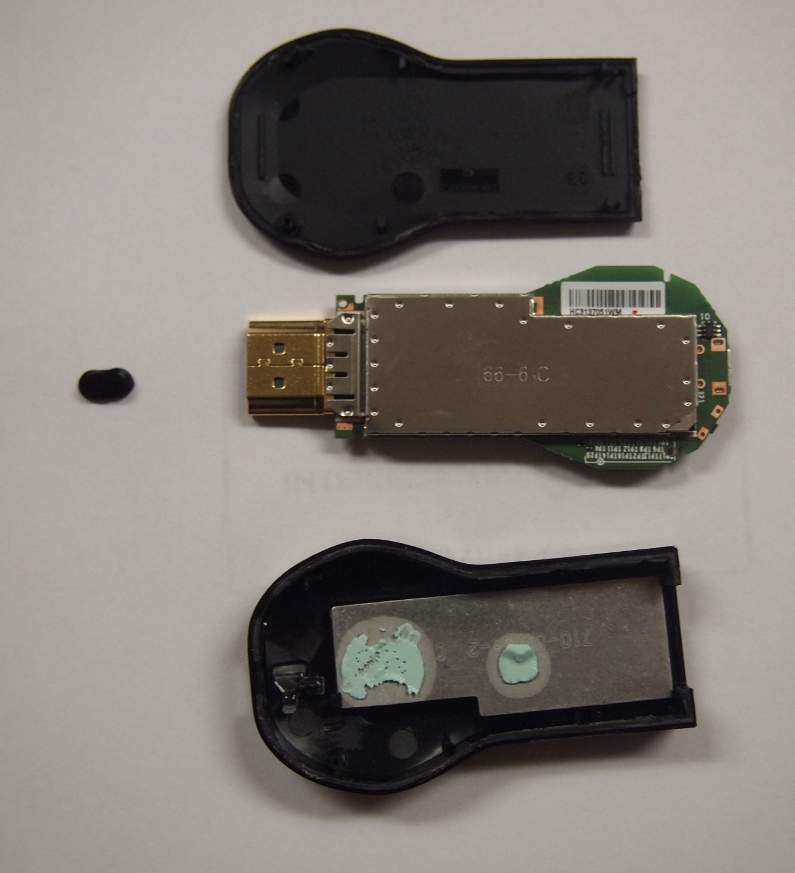

- A great teardown of the Google Chromecast by ifixit.com is available for disassembling the device.
Bootloader Exploit Package
- Blank USB Flash drive (at least 128MB) –Your drive will be erased–
- Our USB Image
- Google Chromecast
- Powered Micro USB OTG Cable
- If not a Powered Micro USB OTG Cable, then find a way to rig up a cable that does just this. We will not provide instructions, it’s simple, but still. Just buy the cable.
- Download .zip and extract the "gtvhacker-chromecast.bin" file.
- Install our USB image as a whole to your USB flash drive with dd:
Syntax: dd if=gtvhacker-chromecast.bin of=/dev/sdX bs=1024
- Plug the flash drive into one female “A” end of the USB OTG cable
- Plug the other end into the Chromecast
- Hold down the button on the Chromecast while plugging in the power cord.
- Watch the screen, and any blinking light on your flash drive. The Chromecast will power up, execute our unsigned kernel, kick off to a script that replaces /system with a rooted one. It will then wipe /data, and reboot back to the normal system. All of this should take about a minute. Don’t unplug anything while it is installing.
- When it is complete, your box will reboot, and you will see a new splash screen, and then the Setup screen. Just re-set up your Chromecast, and you can telnet to get a root shell on your Chromecast on port 23!
Bootloader Exploit Package Download
- [| Download] provided by Exploitee.rs

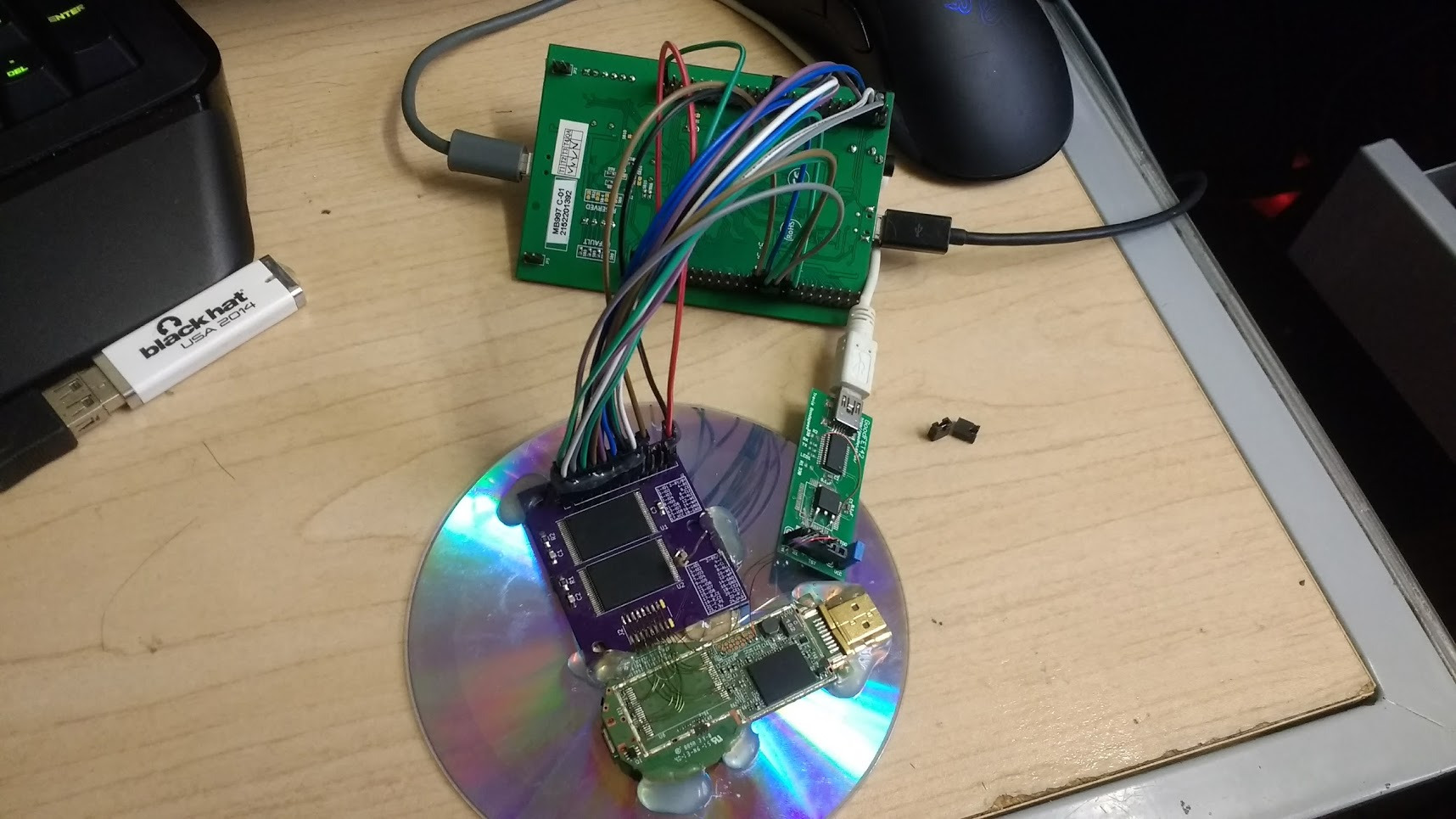

Bootloader HW Downgrade
- Google Chromecast
- STM32F4 Discovery Board or other NAND programer
- Flash the NAND programer firmware to Discovery Board
- Solder Chromecast NAND flash to the NAND programer
- Dump the NAND flash
- Extract the Keystore blob from boot partition. Check flash_bootloader binary for keystore offset
- Get a pre 12840 bootloader. The one with the USB boot vulnerability
- Generate a new bootloader image. Check flash_bootloader binary for how to generate image
- Calculate ECC
- Write bootloader to Chromecast
- Now you can boot any image over USB
