Samsung SDR-3102N

From Exploitee.rs
Jump to navigationJump to search

"Although the information we release has been verified and shown to work to the best our knowledge, we cant be held accountable for bricked devices or roots gone wrong."


Purchase

Buying devices is expensive and, in a lot of cases our testing leads to bricked equipment. If you would like to help support our group, site, and research please use one of the links below to purchase your next device. Purchase the Samsung SDR-3102N at Amazon

Information

  • Name: SDR-3102N
  • Manufacturer: Samsung
  • SoC: HiSilicon
  • OS: Linux

UART

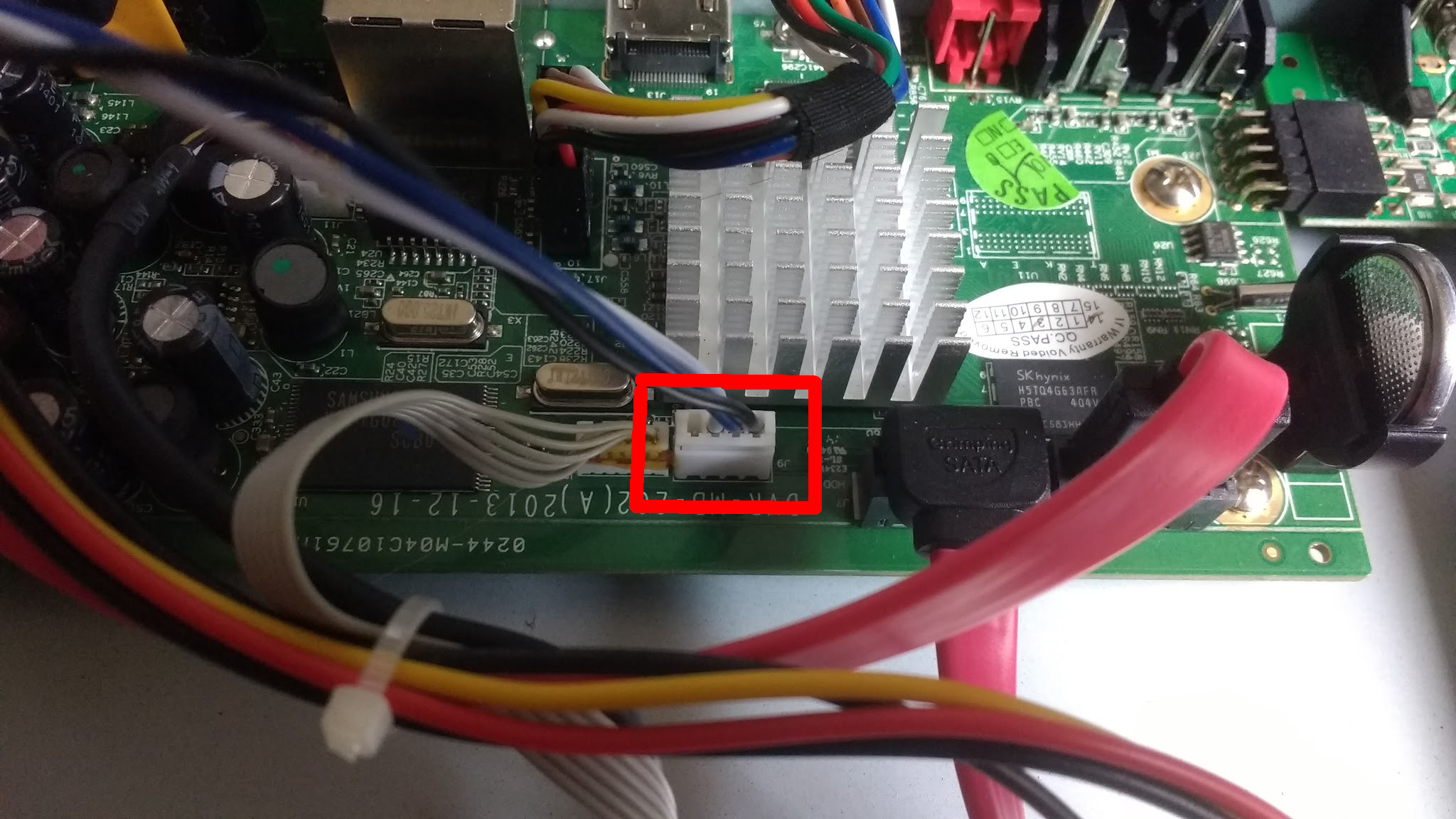

The pin-out for UART can be found on the image below.

USB Root

  • Startup script detects a FAT USB Drive
  • Executes "diag_1673" if it exists
  • Create a file named "diag_1673"
#!/bin/sh
/bin/busybox telnetd -l /bin/sh
  • Reboot

Demo

UART Root

  • Connect to UART, baudrate: 115200
  • Hold enter to break into UBoot
  • Run following commands to set console and init to /bin/sh
setenv bootargs "mem=160M console=ttyAMA0,115200 root=/dev/ram rw rootfstype=ext2 mtdparts=hinand:1M(boot),1M(env),4M(kernel),15M(rootfs),99M(data),4M(system),4M(logo) libata.force=noncq init=/bin/sh"
  • Then run the bootcmd to boot to kernel
run bootcmd
  • It should drop you into a root shell
